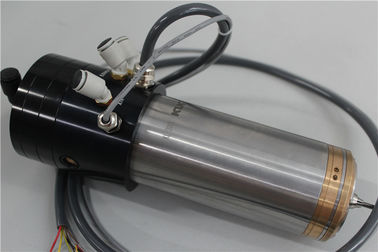

Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle

Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle
Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle

Large Image :  Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: KL200L
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-25 WORKING DAYS
Payment Terms: T/T;WESTERN UNION
Supply Ability: 500SET/MONTH
Detailed Product Description
Material: Steel, Copper, Etc. Color: Silver(Body) And Blue/Black(cylinder)
High Light:

dental spindle

,

electric spindle

,

CNC high speed motor spindle



Compatible D1822 200,000RPM KL200L CNC High Speed Spindle PCB Drilling



Quick Detail :



MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

KL200L

D1822

SPEED RANGE:
20,000 - 200,000 rpm
Ø6.35mm-0.05mm
 precision drilling

Static Run Out:<2µm

Dynamic Run Out:<8µm

Vibration:0.5 MM/S



KLINGINBERG
PLURITEC
HITACHI
LENZ
ANDERSON ….



PRODUCT DESCRIPTION

MODEL KL200L
REPLACE FOR : D1822 SPEED RANGE:20,000 - 200,000 rpm

BEARING TYPE : Air bearing

SPINDLE WEIGHT : 4.3kg

COLLET SIZE : Ø1/8”

BODY SIZE : Ø 61.9



Max power : 0.9KW

Air Pressure : 6.0 -6.5kgf/cm²

Coolant : Water oil

Fixed voltage : 215V

Fixed current : 4A

FREQUENCY (HZ) : 334-3570

PTC SENSOR (Data pl. inquiry)


Competitive Advantage :
LOW STATIC
LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING


APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE : Ø6.35mm-0.05mm

MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….




SPECIFICATION :



Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<8µm

Collet torque(N.cm)

 >15.2( 1/8”)

Vibration

0.5MM/S

Temperature sensor ohms KΩ

R=0.10±5% AT 25℃

Open air pressure

  <5.0kg/cm²

Close air pressure

>2.5 kg/cm²

Coolant water flux

>0.8(L/min)

Coolant oil flux

>1.5(L/min)

Air consume flux at 20krpm

58(L/min)

Radial load

6.0kgf





                                 Spindle outline drawing


Water/oil Cooled Air Bearing CNC High Speed Spindle , 0.9KW 180000 RPM Motor Spindle 0
