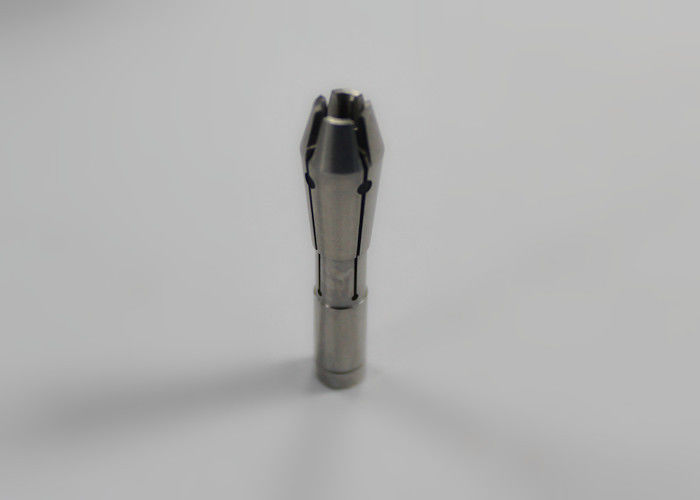

180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind

180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind
180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind 180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind 180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind 180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind

Large Image :  180000 rpm CNC Router Spindle Drill Collet D1686-12 Westwind Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: D1686-12
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Export Box
Delivery Time: 3~15 days
Payment Terms: TT IN ADVANCE
Supply Ability: FOB Shenzhen
Detailed Product Description
High Light:

router collet

,

spindle collet

 Quick Detail:


MODELName OEMMax Speed Application Machine
D1686-12Drill ColletWESTWIND180,000 rpmPCB drilling Pluritec


Description:

D1686-12  Westwind Spindle Collet of PCB Air Bearing spindle

High precision collet for PCB drilling or router spindle.  Its high speed up to 180K rpm, for Pluritec CNC machine.
Runout, vibration, torque, etc controled very strictly to meet high precision hole drilling.

What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life  is your priority choice.

We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using KLKJ collets will enhance the performance of your spindle and extend their working life

Specifications:

Collet list and application spindle
ModelPNApplication other Spindle
D1331-1717593;17809;20924D1201-02 ,06 ,19 , 20 ,21 ,33 ,34
D1263-03 ,04 ,06 ,07 ,08 ,09 ,
D1199-03 ,D1210 ,ABW110
1531-01 ,02 ,04 ,06 ,09 ,
1331-01 ,02 ,03 ,07 ,08 ,09 ,10 , 13
D1331-17 ,19 ,20 ,21 ,24 ,27 ,28 ,38
D1331-2638431;34381D1404 ,D1502 ,D1686-01 ,02 ,03 ,04
1331-25 ,26 ,29 ,31
D1331-3638730D1331-36
D1331-41374621331-08,30,32,41,42,44,D1201
1531-08 ,SM170 , MCT150 ,160 ,170
D1331-47419281331-22 ,1331-47
D1331-49416111331-49 ,48 ,51
D168640374D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23
D1722-03 1264 ,1600 , H501 ,H512 ,1600-01 ,H516D
D1769416111769-06 ,10
D1787 D1787-01 ,D1787-07
D1822-01 D1822-09
M320-2411257 ; 08085A1D1519-01 , M320-01 ,03 ,05 ,07 ,10 ,11 ,16 ,17
M320-18, 19 , 20 ,22 ,23 ,27 ,28 ,29 ,30 ,36 ,47 ,52
M320-38161941303 , M320-43 , M320-38 ,M320-55
M320-6416703M320-46,50,62,63,64,65,66
M320-63A , 64A ,65A , 66A ,D1170-04,D1303-01,
D1303-02,D1524-01,02,03,04,05
M320-64C39773M320-64C
H242B H242B
HR08A HR08A
H912B ABL-125 ,ASC125 , AW125 , 127480 ,88288
H916A3 H916A3 , H916A
H916C143480H916B
H920B AW160-08 , AW160 , H920A
H920E1 H920E1
ABWR8017508 ; 216844-10 ,1251-03,ABWR80,M320-60,ABW80
ABW12541844;414741-01D1199-06,10,ABW125,ABW-170,D1473-07
SC-5353533;033503SC-53
SC-6363503SC-63
SC-3163263508 ; 263506; 263504SC-3263,HB60B,61B,HB60D,RA-60,KL-60B
W-6240508518W-62
W-69230505W-69
HB50B230504HB50
168 168
SM-220 MCT220
AB200 AB200
SFA2300 SFA2300
More than above models can offered please contact us for details.



Collet Maintenance:

Collet Maintenance - How Often?

It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.

KLKJ suggest the following maintenance intervals:-

Removable collets   every 100 operating hours

Bonded collets    every 24 operating hours



The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.

Please contact KLKJ if you would like advice on your particular situation.



Collet Identification



Spindle models with removable Collet:

M320, D1199, D1201, D1251, D1263, D1303, D1331,

D1473, D1524, D1531, D1686, D1750, D1823-02R



Spindle models with bonded Collet:

D1080, D1264, D1600, D1686, D1722, D1748, D1733,

D1787, D1790, D1795, D1812, D1822, D1823-01



Removable Collet Types:

Removable Collet are either “dead stop” or “positive lock” type.

The “dead stop” type can be identified by a groove around the rear barrel of the collet.

Please ensure you use the correct maintenance instructions.



Bonded Collet – Do not remove the collet

More details, please feel free to contact KLKJ.
