60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding

China 60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding supplier
60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding supplier 60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding supplier 60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding supplier

Large Image :  60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding

Product Details:

Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008 ; UKAS; IAF
Model Number: KL-200B

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-15 WORKING DAYS
Payment Terms: T/T;L/C;WESTERN UNION
Supply Ability: 500SET/MONTH
Contact Now
Detailed Product Description







PRODUCT DESCRIPTION



MODEL:KL-60C-1

NAME :BALL BEARING SPINDLE

SPEED RANGE:10,000 - 60,000 rpm

BEARING TYPE:Ball bearing

SPINDLE WEIGHT:4.6kg

COLLET SIZE:ø3.175—ø6



Air Pressure:≥6 kgf/cm²

Motor power:1.2KW-1.5KW

Coolant:Water  oil

Coolant water temperature:20+2

Voltage:33-200V

MAX. CURRENT (A):3A

Dynamic Runout:≤8

Vibration:1.0MM/S

Temperature sensor ohms KΩ: R=10±3% AT 25℃

TORQUE(g): ø3.175≥800g  ø6≥1500g





Competitive Advantage:



LOW STATIC

LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE

SUITABLE FOR P.C.B ROUTING INDUSTRY, OPTIC EYEGLASSES GRINDING, TEEGH GRINDING.

WATER-PROOF





APPLICATION :



1, PRINT CIRCUIT BOARD ROUTING PROCESS

MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….

2, OPTIC EYEGLASSES PROCESS

3, TEETH GRINDING





Quick Detail:



MODEL

NAME

DESCRIPTION

Application

Machine reference

Bearing type

KL-60C-1

SPINDLE

SPEED RANGE: 10,000 - 60,000 rpm

High precision routing

Print Circuit Boad Routing

TALIANG; LISONG

Ball Bearing





SPECIFICATION:



SPEED RANGE

10,000-60,000

FREQUENCY (HZ)

167-1000

MOTOR TYPE

THREE PHASE

MOTOR OUTPUT POWER

1.2KW-1.5KW

TORQUE(g)

ø3.175≥800g  ø6≥1500g

VOLTAGE (V)

33-200

COLLET CLAMPING DIAMETER (mm)

ø3.175—ø6

COLLING TEMPERATURE(°C)

20

BEARING TYPE

BALL BEARING

AIR PRESSURE (kg/cm2)

≥6

RUNOUT (μm)

≤8

VIBRATION (mm/s)

≤1.0

THREE PHASE RESISTANCE (Ω)

2.2

COLLET LOCK TYPE

DEAD COLLET

SPINDLE WEIGHT (kg)

Around 4.6

MAX. CURRENT (A)

< 5

GRIP AIR PRESSURE (kg/cm2)

≥1.5

RELEASE AIR PRESSURE (kg/cm2)

≤4.5

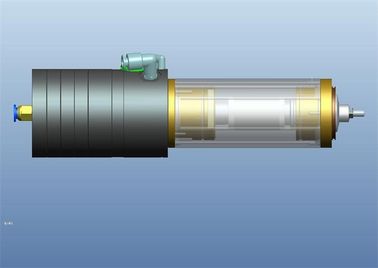

Spindle drawing

60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding
