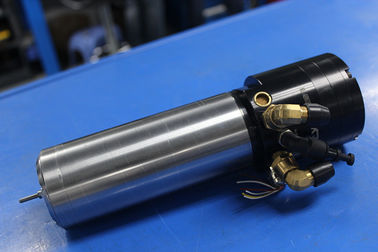

Compatible H916C 160,000RPM KLAB160C CNC High Speed Spindle PCB Drilling





Quick Detail:



MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

KLAB160C

H916C

SPEED RANGE:20,000 - 160,000 rpm

Ø6.35mm-0.05mm precision drilling

PCB PRECISION DRILLING

KLINGINBERG PLURITEC

HITACHI

LENZ

ANDERSON ….







PRODUCT DESCRIPTION



MODEL:KLAB160C

REPLACE FOR:H916C

SPEED RANGE:20,000 - 160,000 rpm

BEARING TYPE:Air bearing

SPINDLE WEIGHT:3.2kg

COLLET SIZE:Ø1/8”

BODY SIZE: Ø 61.9



Max power:0.75KW

Coolant:Water oil

Fixed voltage:215V

Fixed current:3A

Static Runout:<2µm

Dynamic Runout:<8µm

Vibration:1.0MM/S



Competitive Advantage:

LOW STATIC

LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE

SUITABLE FOR PRECISION DRILLING



APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING

HOLE RANGE: Ø6.35mm-0.05mm

MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….







SPECIFICATION:





Static runout

<2µm

Dynamic runout

<8µm

Collet torque(N.cm)

>=125( 1/8”)

Vibration

1.0MM/S

Collet size

Ø1/8”

Temperature sensor ohms KΩ

R=10±3% AT 25℃

Open air pressure

<4.5 kg/cm²

Close air presure

>2.5 kg/cm²

Coolant water flux

>1.4(L/min)

Coolant oil flux

>2.7(L/min)

Air consume flux

45(L/min)

Radial load

5.5kgf

Air Pressure

6.0 kgf/cm²







                     KLAB160C SPINDLE OUTLINE DRAWING
