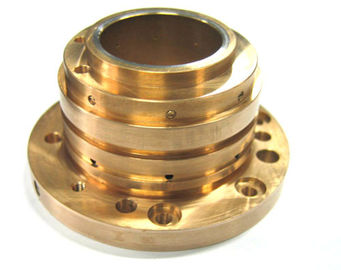

ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings

ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings
ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings

Large Image :  ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings Get Best Price

Product Details:

Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: ABWR80

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Export Box
Delivery Time: 3~15 days
Payment Terms: TT IN ADVANCE
Detailed Product Description
Material: Copper
High Light:

water cooled cnc spindle

,

high speed milling spindle





ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings






  Quick Detail :


MODEL

Name

OEM

Max Speed

Application

Machine

ABWR80

 AIR BEARING

WESTWIND

80,000 rpm

PCB drilling or routing

EXCELLON



Description :



1.      ABWR80 Westwind Air Bearing Of  PCB Drilling Or Routing Spindle



Front bearing, rear bearing and thrust bearing (outer thrust plate) with high precision, high quality, is using for Westwind ABWR80 spindle. The spindle is suitable for PCB drilling or routing in the EXCELLON machine. 80,000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.



Type : Front Bearing,  rear bearing, thrust bearing (outer thrust plate)

Process : Lathe or cutting, milling, grinding, boring, inspection, etc.

Accessory : Speed sensor  ( Can be with or without, only for thrust bearing)



What’s air bearing?



An air bearing is a non-contacting system where a gas film (typically air)
acts as the lubricant that separates the two surfaces in relative motion.



Why use air bearing?



There are benefits for air bearing, as follows :

l        Greater precision

l        High speed

l        Increased tool life

l        Improved surface finish

l        Long bearing life

l        Low thermal growth

l        Lack of maintenance

l        Large load capacity

l        Reduced vibration Cleanliness



Specification :



AIR BEARING LIST FOR PCB SPINDLE

MODEL

SPEED (RPM)

APPLICABLE TO

M320-24(HF80)

80K

PCB drilling or routing

M320-64C

80K

PCB drilling or routing

ABWR80

80K

PCB drilling

ABW110

110K

PCB drilling

D1331

125K

PCB drilling

H912B

125K

PCB drilling

D1201-21

125K

PCB drilling

D1524

125K

PCB drilling

H501A(D1264-07)

125K

PCB drilling

H512A(D1600-01)

125K

PCB drilling

D1531-09

150K

PCB drilling

H516D(D1722-03)

160K

PCB drilling

H916B

160K

PCB drilling

H916C

160K

PCB drilling

D1769-03

160K

PCB drilling

D1686

180K

PCB drilling

D1780-01

180K

PCB drilling

D1787-07A

200K

PCB drilling

H920B

200K

PCB drilling

H920A

200K

PCB drilling

H920E1

200K

PCB drilling

D1822-09

200K

PCB drilling

D1787-01

200K

PCB drilling

UH30AL

300K

PCB drilling

More than above models can offered please contact us for details.
