Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle

Good quality PCB Drilling Spindle for sales
KLKJ Company is a high class company to make spindles

—— Mr. Luigi

Tested , finish quality looks great! We will order more in the near future.

—— Mr. Ron

we are intending to think over a long-term solution in cooperation with KLKJ is without doubt .

—— Mr. Kevin

I'm Online Chat Now

Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle

China Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle supplier
Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle supplier Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle supplier Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle supplier Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle supplier

Large Image :  Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle

Product Details:

Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: KL200P

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-25 WORKING DAYS
Payment Terms: T/T;L/C;WESTERN UNION
Supply Ability: 500SET/MONTH
Contact Now
Detailed Product Description



Compatible WWD1822 200,000RPM KL200P PCB Drilling Spindle


Quick Detail:


MODEL

REPLACE FOR

DESCRIPTION

KEY PRECISION

Machine reference

KL200P

D1822

D1686

SPEED RANGE:

20,000 - 200,000 rpm

Ø6.35mm-0.05mm

 precision drilling

Static Runout:<2µm

Dynamic Runout:<6µm

Vibration:0.5 MM/S



KLINGINBERG

PLURITEC

HITACHI

LENZ

SCHMOLL

ANDERSON ….




PRODUCT DESCRIPTION

KL200P high frequency spindle replace for WW D1822 or For WWD1686 Full Range from 20,000 to 200,000 rpm, air bearing type in long life, spindle weight 3.9kg with COLLET size Ø1/8” and body size Ø 61.9

Max power: 0.85KW
Air Pressure: 6.0 -6.5kgf/cm²
Coolant: Water oil
Fixed voltage: 200V
Fixed current: 3A
FREQUENCY (HZ): 334-3350
PTC or NTC Sensor for choose
Wine wave or Square wave available


Competitive Advantage:

Low Static
Low Dynamic RUN OUT
Stable character and long life
Suitable for precision drilling
Air bearing type offer Greater Precision, High Speed , Increased Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal Growth, Lack of Maintenance, Large Load Capacity , Reduced Vibration , Cleanliness.

APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ;SCHMOLL….



SPECIFICATION:



Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<6µm

Collet torque(N.cm)

>13( 1/8”)

Vibration

0.5MM/S

Temperature sensor ohms KΩ

R=0.10±5% AT 25℃

Open air pressure

                      <5.0kg/cm²

Close air pressure

>2.5 kg/cm²

Coolant water flux

>2.0(L/min)

Coolant oil flux

>3.8(L/min)

Air consume flux at 20krpm

48(L/min)

Radial load

6.0kgf

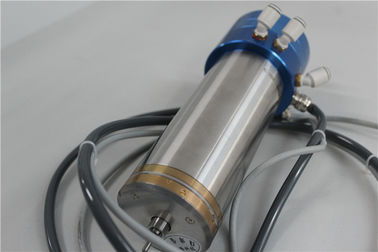

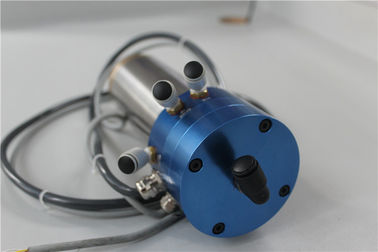

                                    Compatible D1822 200,000RPM KL200P SPINDLE DRAWING

Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle
Compatible WWD1822 200000RPM PCB Drilling Spindle CNC Machine Spindle



Why choose KLKJ?


With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.


All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:

1.     Air flow

2.     Water flow

3.     End float/lift off

4.     Axial load (inner)

5.     Axial load (outer)

6.     Torque

       7.  Static RUNOUT

       8.  Dynamic RUNOUT

      9.  Motor check

    10. Vibration

    11. Material analysis & strictly quality test detection control

   12. Stringent tolerance control
