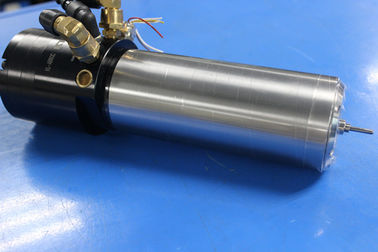

0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm

0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm
0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm 0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm 0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm 0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm

Large Image :  0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: KLAB160C
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-25 WORKING DAYS
Payment Terms: T/T;L/C;WESTERN UNION
Supply Ability: 400SET/MONTH
Detailed Product Description
High Light:

cnc machine spindle

,

electro spindle

,

0.75KW Cnc Router Motor Spindle





Compatible ABL H916C KLAB160C 160,000RPM KLAB160C PCB Drilling Spindle





Quick Detail:



MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

KLAB160C

H916C

SPEED RANGE:20,000 - 160,000 rpm

Ø6.35mm-0.05mm precision drilling

PCB PRECISION DRILLING

KLINGINBERG PLURITEC

HITACHI

LENZ

ANDERSON ….







PRODUCT DESCRIPTION



KLAB160C high frequency spindle replace for ABL H916C Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 3.2kg with COLLET size Ø1/8” and body size Ø 61.9



Max power: 0.75KW

Coolant: Water oil

Fixed voltage: 215V

Fixed current: 3A

Static Runout: <2µm

Dynamic Runout: <8µm

Vibration: 1.0MM/S







Competitive Advantage:



Low Static

Low Dynamic RUN OUT

Stable character and long life

Suitable for precision drilling

Air bearing type offer Greater Precision, High Speed , Increased Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal Growth, Lack of Maintenance, Large Load Capacity , Reduced Vibration , Cleanliness



APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING

HOLE RANGE: Ø6.35mm-0.05mm

MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….







SPECIFICATION:





Static runout

<2µm

Dynamic runout

<8µm

Collet torque(N.cm)

>=125( 1/8”)

Vibration

1.0MM/S

Collet size

Ø1/8”

Temperature sensor ohms KΩ

R=10±3% AT 25℃

Open air pressure

<4.5 kg/cm²

Close air presure

>2.5 kg/cm²

Coolant water flux

>1.4(L/min)

Coolant oil flux

>2.7(L/min)

Air consume flux

45(L/min)

Radial load

5.5kgf

Air Pressure

6.0 kgf/cm²









 KLAB160C SPINDLE OUTLINE DRAWING









0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm 0





                         QUALITY COMMENT FROM CUSTOMER



0.75KW PCB Drilling Spindle Cnc Router Motor Spindle Ø6.35mm - 0.05mm 1
