High Precision Rear Air Bearings Lathe / Cutting Air Bearing D1531-09

China High Precision Rear Air Bearings Lathe / Cutting Air Bearing D1531-09 supplier

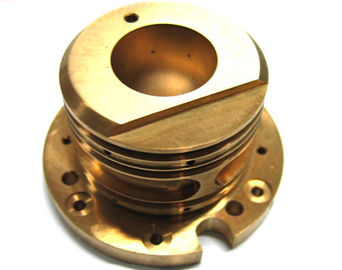

Large Image :  High Precision Rear Air Bearings Lathe / Cutting Air Bearing D1531-09

Product Details:

Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: D1531-09

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Export Box
Delivery Time: 3~15 days
Payment Terms: TT IN ADVANCE
Contact Now
Detailed Product Description



Quick Detail:



MODEL

Version

Name

OEM part No.

Max Speed

Application

D1531

-9

 Rear AIR BEARING

43065A, 43430A, 43586A

150,000 rpm

PCB drilling  spindle


Description:



D1531-09 Westwind Air Bearing Of PCB drilling



Front bearing , rear bearing and thrust bearing (outer thrust plate) with high precision , high quality , is using for Westwind D1531-09 spindle . The spindle is suitable for PCB drilling in the Pluritec machine . 150,000rpm high speed optimizes the spindle performance , to produce high precision hole , or make sure the router edge is fine grade .



Type : Front Bearing ,  rear bearing , thrust bearing (outer thrust plate)

Process : Lathe or cutting , milling , grinding , boring , inspection , etc .

Accessory : Speed sensor  ( Can be with or without, only for thrust bearing)





What’s air bearing?

An air bearing is a non-contacting system where a gas film (typically air)
acts as the lubricant that separates the two surfaces in relative motion.



Why use air bearing?

There are benefits for air bearing, as follows:

l        Greater precision

l        High speed

l        Increased tool life

l        Improved surface finish

l        Long bearing life

l        Low thermal growth

l        Lack of maintenance

l        Large load capacity

l        Reduced vibration Cleanliness



Specifications:



AIR BEARING LIST FOR PCB SPINDLE

MODEL

SPEED (RPM)

APPLICABLE TO

M320-24(HF80)

80K

PCB drilling or routing

M320-64C

80K

PCB drilling or routing

ABWR80

80K

PCB drilling

ABW110

110K

PCB drilling

D1331

125K

PCB drilling

H912B

125K

PCB drilling

D1201-21

125K

PCB drilling

D1524

125K

PCB drilling

H501A(D1264-07)

125K

PCB drilling

H512A(D1600-01)

125K

PCB drilling

D1531-09

150K

PCB drilling

H516D(D1722-03)

160K

PCB drilling

H916B

160K

PCB drilling

H916C

160K

PCB drilling

D1769-03

160K

PCB drilling

D1686

180K

PCB drilling

D1780-01

180K

PCB drilling

D1787-07A

200K

PCB drilling

H920B

200K

PCB drilling

H920A

200K

PCB drilling

H920E1

200K

PCB drilling

D1822-09

200K

PCB drilling

D1787-01

200K

PCB drilling

UH30AL

300K

PCB drilling

More than above models can offered please contact us for details.
