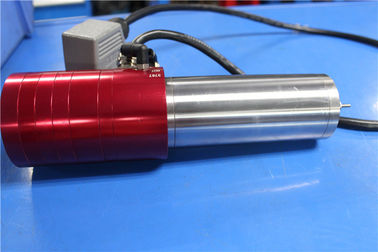

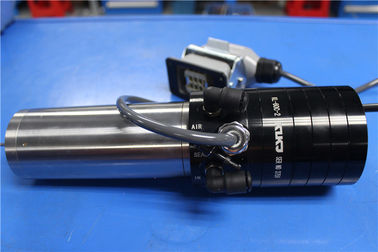

High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm

High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm
High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm

Large Image :  High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008 ; UKAS; IAF
Model Number: KL-60C-2
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-15 WORKING DAYS
Payment Terms: T/T;L/C;WESTERN UNION
Supply Ability: 500SET/MONTH
Detailed Product Description
High Light:

replacement spindle

,

drilling machine spindle

,

spindle for cnc milling





60,000RPM KL-60C-2 CNC Milling Spindle Optic Grinding





PRODUCT DESCRIPTION



MODEL: KL-60C-2

NAME : BALL BEARING SPINDLE

SPEED RANGE: 10,000 - 60,000 rpm

BEARING TYPE: Ball bearing

SPINDLE WEIGHT: 4.6kg

COLLET SIZE: ø3.175



Air Pressure: ≥6 kgf/cm²

Motor power: 1.2KW

Coolant: Water  oil

Coolant water temperature: 20+2

Voltage: 33-200V

MAX. CURRENT (A): 3A

Dynamic Runout: ≤8

Vibration: 1.0MM/S

Temperature sensor ohms KΩ:  R=10±3% AT 25℃

TORQUE(g):  ø3.175≥800g







Competitive Advantage:



LOW STATIC

LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE

SUITABLE FOR P.C.B ROUTING INDUSTRY, OPTIC EYEGLASSES GRINDING, FOR DENTAL GRINDING INDUSTRY.





APPLICATION :



1, PRINT CIRCUIT BOARD ROUTING PROCESS

MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….

2, OPTIC EYEGLASSES PROCESS

3, APPLIED IN DENTAL INDUSTRY







Quick Detail:



MODEL

NAME

DESCRIPTION

Application

Machine reference

KL-60C-2

SPINDLE

SPEED RANGE:10,000 - 60,000 rpm

High speed precision grinding

PCB Routing

Optic Glasses Grinding



DALIANG

RISONG











SPECIFICATION:



SPEED RANGE

10,000-60,000

FREQUENCY (HZ)

167-1000

MOTOR TYPE

THREE PHASE

MOTOR OUTPUT POWER

1.2KW-1.5KW

TORQUE(g)

ø3.175≥800g

VOLTAGE (V)

33-200

COLLET CLAMPING DIAMETER (mm)

ø3.175

COLLING TEMPERATURE(°C)

20

BEARING TYPE

BALL BEARING

AIR PRESSURE (kg/cm2)

≥6

RUNOUT (μm)

≤8

VIBRATION (mm/s)

≤1.0

THREE PHASE RESISTANCE (Ω)

2.2

COLLET LOCK TYPE

DEAD COLLET

SPINDLE WEIGHT (kg)

Around 4.6

MAX. CURRENT (A)

< 5

GRIP AIR PRESSURE (kg/cm2)

≥1.5

RELEASE AIR PRESSURE (kg/cm2)

≤4.5







                        KL-60C-2 Spindle drawing





High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm 0









                     QUALITY FEEDBACK FROM CUSTOMER



High Frequency Optic Grinding CNC Milling Spindle 10000 Rpm - 60000 Rpm 1
