Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling

China Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling supplier
Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling supplier Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling supplier Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling supplier

Large Image :  Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling

Product Details:

Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: KL-160

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: KLKJ Standard Packing or As customer request
Delivery Time: 10-25 Working Days
Payment Terms: T/T;L/C;WESTERN UNION
Supply Ability: 500 PCS/ Month
Contact Now
Detailed Product Description
Material: Steel, Aluminum, Copper Color: Black, Blue Or As Customer Request
Motor Type: Build In AC Motor Tool Change: ATC
Coolant Type: Water Or Oil

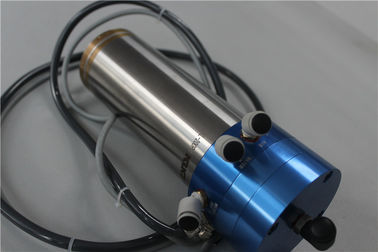

High speed air bearing spindle RPM160,000 for PCB precision drilling


Quick Detail:



MODEL

Instead of

DESCRIPTION

KEY PRECISION

Machine reference

KL160

H516D
D1722

SPEED RANGE:20,000 - 160,000 rpm
Ø6.35mm-0.05mm precision drilling

Static Runout:<2µm
Dynamic Runout:<7µm
Vibration:1.0MM/S


KLINGINBERG PLURITEC
HITACHI
LENZ
ANDERSON ….



Description

Item No.: KL160
Speed scope :20,000 - 160,000 rpm
Instead of : H516D ; D1722
Bearing :Air bearing
Weight : 4.1 Kgs
Collet Dia :Ø1/8”
Spindle Body Dia : Ø 61.9
Frequency scope (HZ): 334-2760
Speed sensor :  Optional

Max power:0.85KW
Coolant:Water oil
Fixed voltage:200V
Fixed current:4A
Static Runout:<2µm
Dynamic Runout:<7µm
Vibration:1.0MM/S

Advantage:
Low static
Low Dynamic runout
Long life and reliable
Available for precision PCB holes drilling

Main Application :
PCB holes precision holes drilling
Holes Dia scope : Ø6.35mm-0.05mm

MACHINE REFERENCE: KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….


SPECIFICATION:



Air Pressure

6.0 kgf/cm²

Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<7µm

Collet torque(N.cm)

>=150( 1/8”)

Vibration

1.0MM/S

Collet size

Ø1/8”

Temperature sensor ohms KΩ

R=0.1±5% AT 25℃

Open air pressure

                         <5 kg/cm²

Close air pressure

>2 kg/cm²

Coolant water flux

>1.5(L/min)

Coolant oil flux

>3.0(L/min)

Air consume flux

74(L/min)

Radial load

6.0kgf

Air Pressure

6.0 kgf/cm²




                                 KL161 OUTLINE DRAWING

Water / Oil Coolant 160000 High Rpm Spindle For Precision PCB Drilling


Why choose KLKJ?

With nearly 15 years experience in spindle maintenance, 10 years successful experience for spindles parts making , and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:

1.     Air flow

2.     Water flow

3.     End float/lift off

4.     Axial load (inner)

5.     Axial load (outer)

6.     Torque

        7.  Static RUNOUT

        8.  Dynamic RUNOUT

        9.  Motor check

       10. Vibration

      11. Material analysis & strictly quality test detection control

      12. Stringent tolerance control
