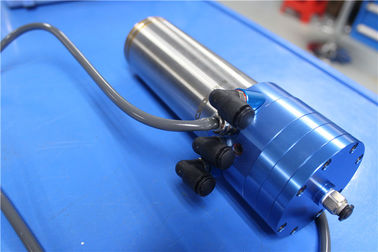

160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722

160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722
160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722 160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722 160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722 160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722

Large Image :  160000 RPM Low Static High Speed Air Spindle Compatible ABL H516D WW D1722 Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: KL160G
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-25 WORKING DAYS
Payment Terms: T/T;L/C;WESTERN UNION
Supply Ability: 500SET/MONTH
Detailed Product Description
Highlight:

water cooling spindle

,

cartridge spindle

,

compatible abl air spindle





Compatible ABL H516D WW D1722 160,000RPM KL160G High Speed Air Spindle PCB PRECISION DRILLING





Quick Detail:



MODEL

REPLACE FOR

DESCRIPTION

KEY PRECISION

Machine reference

KL160G

H516D

D1722

SPEED RANGE:20,000 - 160,000 rpm

Ø6.35mm-0.05mm precision drilling

Static Runout:<2µm

Dynamic Runout:<7µm

Vibration:1.0MM/S



KLINGINBERG PLURITEC

HITACHI

LENZ

ANDERSON ….





PRODUCT DESCRIPTION



KL161D industry standard body style and tool holding system spindle replace for ABL H516D or WW D1722 Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 4.1kg with Diameter tool 3.175mm and body size Ø 61.9,Max power 0.85KW, Collet torque(N.cm) >=150. Sensor available



The Parameter of KL161D:

Max power:0.85KW

Coolant:Water oil

Fixed voltage:200V

Fixed current:4A

Static Runout:<2µm

Dynamic Runout:<7µm

Vibration:1.0MM/S



Competitive Advantage:

Low Static

Low Dynamic RUN OUT

Stable character and long life

Power and very low heat generation



Good slot and big hole drilling



Less running costs



ATC feeder / ATC tool change for micromachining



Environment friendly



KLKJ Advantage

The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.

Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.

KLKJ increased productivity and efficiency available allows mass production drilling and routing spindle.



APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLER

2 HEAD OR 4 -6 HEAD DRILLER

HOLE RANGE: Ø6.35mm-0.05mm

MACHINE REFERENCE: SCHMOLL POSALUX KLG PLURITEC KLINGEINBERG LENZ EXCELLON HITACHI





SPECIFICATION:



Air Pressure

6.0 kgf/cm²

Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<7µm

Collet torque(N.cm)

>=150( 1/8”)

Vibration

1.0MM/S

Collet size

Ø1/8”

Temperature sensor ohms KΩ

R=0.1±5% AT 25℃

Open air pressure

                         <5 kg/cm²

Close air pressure

>2 kg/cm²

Coolant water flux

>1.5(L/min)

Coolant oil flux

>3.0(L/min)

Air consume flux

74(L/min)

Radial load

6.0kgf

Air Pressure

6.0 kgf/cm²





                                 KL161 SPINDLE OUTLINE DRAWING
