Highlight: | water cooled cnc spindle,high frequency spindles,westwind air bearing 80000 rpm |
---|
Quick Detail:
MODEL |
Version |
Name |
OEM |
Max Speed |
Application |
HF80 |
|
AIR BEARING |
Westwind |
80,000 rpm |
PCB drilling or routing spindle |
Description:

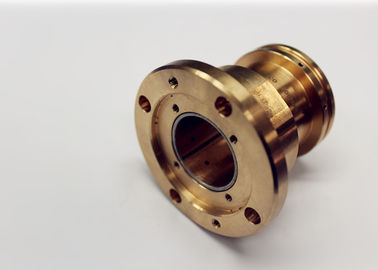

HF80 Westwind Air Bearing of PCB drilling or Spindle
Front bearing, rear bearing and thrust bearing (outer thrust plate) with high precision, high quality, is using for Westwind HF80 spindle. The spindle is suitable for PCB drilling or routing in the Posalux machine. 80,000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.
Type: Front Bearing, rear bearing, thrust bearing (outer thrust plate)
Process: Lathe or cutting, milling, grinding, boring, inspection, etc.
Accessory : without speed sensor
What’s air bearing?
An air bearing is a non-contacting system where a gas film (typically air)
acts as the lubricant that separates the two surfaces in relative motion.
Why use air bearing?
There are benefits for air bearing, as follows:
l Greater precision
l High speed
l Increased tool life
l Improved surface finish
l Long bearing life
l Low thermal growth
l Lack of maintenance
l Large load capacity
l Reduced vibration Cleanliness
Specifications:
AIR BEARING LIST FOR PCB SPINDLE |
||
MODEL |
SPEED (RPM) |
APPLICABLE TO |
M320-24(HF80) |
80K |
PCB drilling or routing |
M320-64C |
80K |
PCB drilling or routing |
ABWR80 |
80K |
PCB drilling |
ABW110 |
110K |
PCB drilling |
D1331 |
125K |
PCB drilling |
H912B |
125K |
PCB drilling |
D1201-21 |
125K |
PCB drilling |
D1524 |
125K |
PCB drilling |
H501A(D1264-07) |
125K |
PCB drilling |
H512A(D1600-01) |
125K |
PCB drilling |
D1531-09 |
150K |
PCB drilling |
H516D(D1722-03) |
160K |
PCB drilling |
H916B |
160K |
PCB drilling |
H916C |
160K |
PCB drilling |
D1769-03 |
160K |
PCB drilling |
D1686 |
180K |
PCB drilling |
D1780-01 |
180K |
PCB drilling |
D1787-07A |
200K |
PCB drilling |
H920B |
200K |
PCB drilling |
H920A |
200K |
PCB drilling |
H920E1 |
200K |
PCB drilling |
D1822-09 |
200K |
PCB drilling |
D1787-01 |
200K |
PCB drilling |
UH30AL |
300K |
PCB drilling |
More than above models can offered please contact us for details. |
Communication with Customers
Cus.: Do you have HF80 bearing?
KLKJ: Yes. Do you mean you need M320-24 bearing?
Cus.: I need M320-24.
KLKJ: Good, the bearing for M320-24 can be supplied now.
Cus.: OK, I want to order FB, RB, TB each one.
KLKJ: Thanks. Please note that the TB is without speed sensor.
Cus.: OK, let me know the price.
KLKJ: We send the quotation to you later by email, okay?
Cus.: OK.
KLKJ: Thank you.
