PCB Drilling Spindle Thrust Air Bearing 150000 rpm D1531-09
Quick Detail:
|
MODEL |
Version |
Name |
OEM part No. |
Max Speed |
Application |
|
D1531 |
-9 |
Thrust AIR BEARING |
43065A, 43430A, 43586A |
150,000 rpm |
PCB drilling spindle |
Description:

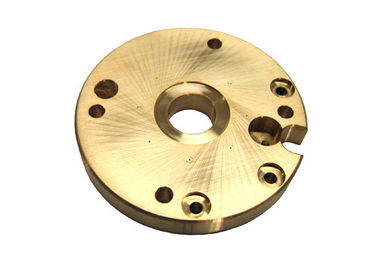

D1531-09 Thrust Westwind Air Bearing Of PCB drilling
Front bearing , rear bearing and thrust bearing (outer thrust plate) with high precision , high quality , is using for Westwind D1531-09 spindle . The spindle is suitable for PCB drilling in the Pluritec machine . 150,000rpm high speed optimizes the spindle performance , to produce high precision hole , or make sure the router edge is fine grade .
Type : Front Bearing , rear bearing , thrust bearing (outer thrust plate)
Process : Lathe or cutting , milling , grinding , boring , inspection , etc .
Accessory : Speed sensor ( Can be with or without, only for thrust bearing)
What’s air bearing?
An air bearing is a non-contacting system where a gas film (typically air)
acts as the lubricant that separates the two surfaces in relative motion.
Why use air bearing?
There are benefits for air bearing, as follows:
l Greater precision
l High speed
l Increased tool life
l Improved surface finish
l Long bearing life
l Low thermal growth
l Lack of maintenance
l Large load capacity
l Reduced vibration Cleanliness
Specifications:
|
AIR BEARING LIST FOR PCB SPINDLE |
||
|
MODEL |
SPEED (RPM) |
APPLICABLE TO |
|
M320-24(HF80) |
80K |
PCB drilling or routing |
|
M320-64C |
80K |
PCB drilling or routing |
|
ABWR80 |
80K |
PCB drilling |
|
ABW110 |
110K |
PCB drilling |
|
D1331 |
125K |
PCB drilling |
|
H912B |
125K |
PCB drilling |
|
D1201-21 |
125K |
PCB drilling |
|
D1524 |
125K |
PCB drilling |
|
H501A(D1264-07) |
125K |
PCB drilling |
|
H512A(D1600-01) |
125K |
PCB drilling |
|
D1531-09 |
150K |
PCB drilling |
|
H516D(D1722-03) |
160K |
PCB drilling |
|
H916B |
160K |
PCB drilling |
|
H916C |
160K |
PCB drilling |
|
D1769-03 |
160K |
PCB drilling |
|
D1686 |
180K |
PCB drilling |
|
D1780-01 |
180K |
PCB drilling |
|
D1787-07A |
200K |
PCB drilling |
|
H920B |
200K |
PCB drilling |
|
H920A |
200K |
PCB drilling |
|
H920E1 |
200K |
PCB drilling |
|
D1822-09 |
200K |
PCB drilling |
|
D1787-01 |
200K |
PCB drilling |
|
UH30AL |
300K |
PCB drilling |
|
More than above models can offered please contact us for details. |
||
