Highlight: | replacement spindle,small spindle,dental grinding spindle |
---|

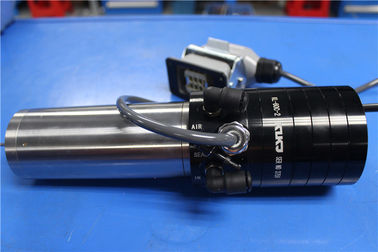

60,000RPM KL-60C-2 CNC Milling Spindle Dental Grinding
PRODUCT DESCRIPTION
MODEL:KL-60C-2
NAME :BALL BEARING SPINDLE
SPEED RANGE:10,000 - 60,000 rpm
BEARING TYPE:Ball bearing
SPINDLE WEIGHT:4.6kg
COLLET SIZE:ø3.175
Air Pressure:≥6 kgf/cm²
Motor power:1.2KW
Coolant:Water oil
Coolant water temperature:20+2
Voltage:33-200V
MAX. CURRENT (A):3A
Dynamic Runout:≤8
Vibration:1.0MM/S
Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ø3.175≥800g
Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR P.C.B ROUTING INDUSTRY, OPTIC EYEGLASSES GRINDING, FOR DENTAL GRINDING INDUSTRY.
APPLICATION :
1, PRINT CIRCUIT BOARD ROUTING PROCESS
MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….
2, OPTIC EYEGLASSES PROCESS
3, APPLIED IN DENTAL INDUSTRY
Quick Detail:
MODEL |
NAME |
DESCRIPTION |
Application |
Machine reference |
KL-60C-2 |
SPINDLE |
SPEED RANGE:10,000 - 60,000 rpm High speed precision grinding |
PCB Routing Optic Glasses Grinding
|
DALIANG RISONG
|
SPECIFICATION:
SPEED RANGE |
10,000-60,000 |
FREQUENCY (HZ) |
167-1000 |
MOTOR TYPE |
THREE PHASE |
MOTOR OUTPUT POWER |
1.2KW-1.5KW |
TORQUE(g) |
ø3.175≥800g |
VOLTAGE (V) |
33-200 |
COLLET CLAMPING DIAMETER (mm) |
ø3.175 |
COLLING TEMPERATURE(°C) |
20 |
BEARING TYPE |
BALL BEARING |
AIR PRESSURE (kg/cm2) |
≥6 |
RUNOUT (μm) |
≤8 |
VIBRATION (mm/s) |
≤1.0 |
THREE PHASE RESISTANCE (Ω) |
2.2 |
COLLET LOCK TYPE |
DEAD COLLET |
SPINDLE WEIGHT (kg) |
Around 4.6 |
MAX. CURRENT (A) |
< 5 |
GRIP AIR PRESSURE (kg/cm2) |
≥1.5 |
RELEASE AIR PRESSURE (kg/cm2) |
≤4.5 |
KL-60C-2 Spindle drawing
