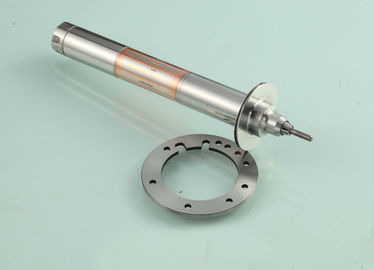

Westwind D1822 CNC Router Spindle Shaft 200000 Rpm For PCB Air Bearing Spindle

Westwind D1822 CNC Router Spindle Shaft 200000 Rpm For PCB Air Bearing Spindle
Westwind D1822 CNC Router Spindle Shaft 200000 Rpm For PCB Air Bearing Spindle Westwind D1822 CNC Router Spindle Shaft 200000 Rpm For PCB Air Bearing Spindle

Large Image :  Westwind D1822 CNC Router Spindle Shaft 200000 Rpm For PCB Air Bearing Spindle Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: D1822
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Export Box
Delivery Time: 7~20 days
Payment Terms: TT IN ADVANCE, Western Union
Detailed Product Description
Material: Steel, Copper
High Light:

spindle shaft assembly

,

spindle stub shaft





Westwind D1822 CNC Router Spindle Shaft 200000 Rpm For PCB Air Bearing Spindle







  Quick Detail :



MODEL

Name

OEM

Max Speed

Application

Machine

D1822

 SPINDLE SHAFT

WESTWIND

180,000 rpm

PCB drilling

Pluritec







Description :



D1822 Westwind Spindle shafts For PCB Air Bearing spindle



Spindle shaft with high precision, high quality, is using for D1822 spindle. The spindle is suitable for PCB drilling in the Pluritec machine. 180,000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.



Shaft plays a KEY important role of a PCB spindle. It is important to make sure the surface is to specification (size and run out) or the following may result :
-Run out
-Vibration
-Fretting
-Noise
-Poor part finish
-Decreased bearing life
-Coupling damage
-Rotary Union Damage



Air bearing spindles are required a high precision, accuracy shaft to support, so that can be running in good condition for PCB CNC drilling. As a professional manufacturer, we put a lot of capital on the technical and inspection equipments, for achieving high precision requirements to make sure the spindle quality.



Friendly reminding, properly maintenance spindle and collet is good for prolong spindle using life, also good for each parts using life.







Specifications:



SHAFT FOR AIR BEARING SPINDLE

MODEL

SPEED (RPM)

APPLICABLE TO

M320-64C

80K

PCB drilling or routing

ABW110

110K

PCB drilling

D1331

125K

PCB drilling

D1201-21

125K

PCB drilling

H501A(D1264-07)

125K

PCB drilling

H512A(D1600-01)

125K

PCB drilling

D1531-09

150K

PCB drilling

H516D(D1722-03)

160K

PCB drilling

H916C

160K

PCB drilling

D1686

180K

PCB drilling

D1780-01

180K

PCB drilling

H920B

200K

PCB drilling

H920E1

200K

PCB drilling

D1822-09

200K

PCB drilling

More than above models can offered please contact us for details.







Communication with Customers



Cus. :  Hi, do you have D1822 shaft?

KLKJ :  Yes, how many do you need?

Cus. :  5, possible?

KLKJ :  Sure, which extension number of the model?

Cus. :  D1686-16.

KLKJ :  OK, we can offer it.

Cus. :  Sounds good. Please prepare two for me.

KLKJ :  Great!  I will update you by email.

Cus. :  OK.

KLKJ :  Thanks.
