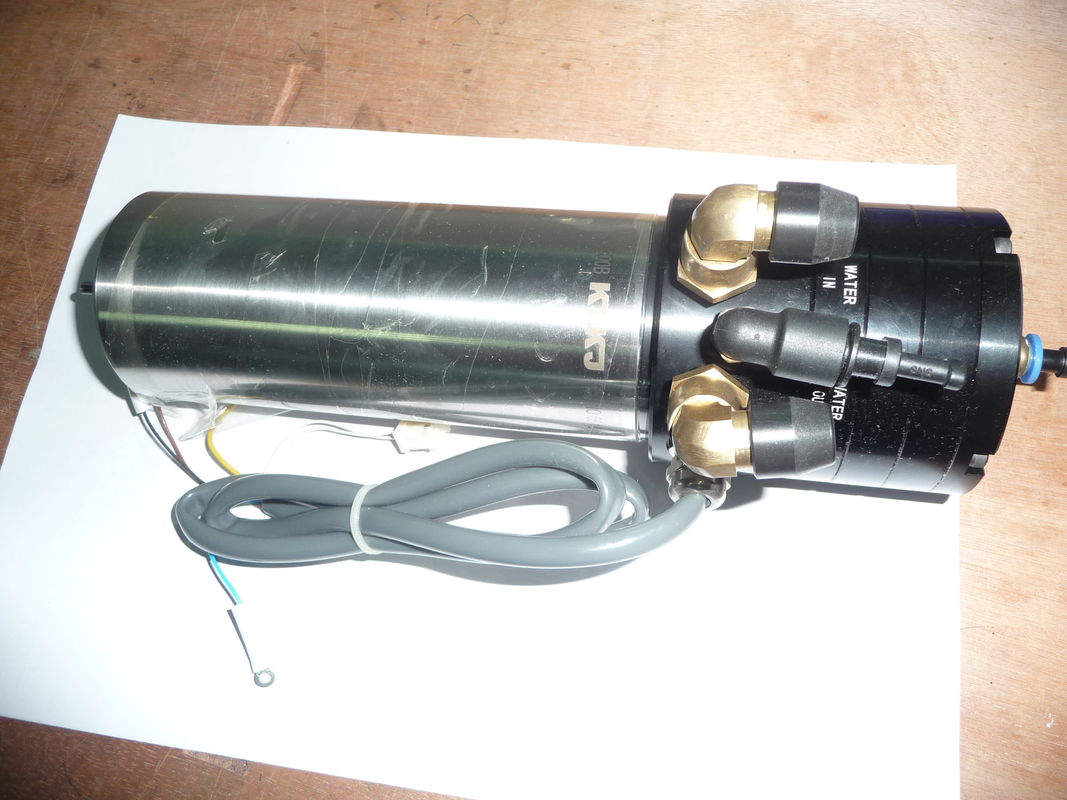

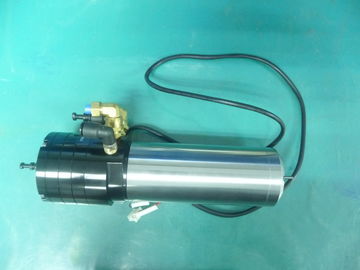

Compatible H920E1 200,000RPM KL200K Air Bearing Motor Spindle PCB Drilling
Quick Detail:
MODEL |
REPLACE FOR |
DESCRIPTION |
Application |
Machine reference |
KL200K |
H920E1 |
SPEED Scope : 20,000 - 200,000 rpm |
PCB holes drilling |
KLINGINBERG PLURITEC |
PRODUCT DESCRIPTION
Item : KL200K
Instead of : H920E1 SPEED RANGE: 20,000 - 200,000 rpm
Bearing : Air bearing
Weight : 3.3 Kgs
Collet : Ø1/8”
Body Dia : Ø 61.9
Max power : 0.8KW
Air Pressure : 6.0 kgf/cm²
Coolant : Water oil
Fixed voltage : 200V
Fixed current : 3A
FREQUENCY (HZ) : 334-3350
Static Runout : <1µm
Dynamic Runout : <7µm
Vibration : 1.0MM/S
Advantage :
Low static
Low dynamic runout
Long life and reliable
Available for PCB holes precision drilling
Main Using :
Precision hole drilling for PCB
Hole Dia range : Ø6.35mm - 0.05mm
MACHINE REFERENCE : KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….
SPECIFICATION:
Coolant water temperature |
20+2 |
Static runout |
<1µm |
Dynamic runout |
<7µm |
Collet torque(N.cm) |
>=150( 1/8”) |
Vibration |
1.0MM/S |
Temperature sensor ohms KΩ |
R=10±3% AT 25℃ |
Open air pressure |
<4.5 kg/cm² |
Close air pressure |
>2.5 kg/cm² |
Coolant water flux |
>1.2(L/min) |
Coolant oil flux |
>2.5(L/min) |
Air consume flux |
45(L/min) |
Radial load |
5.5kgf |
KL200K SPINDLE OUTLINE
Why choose KLKJ?
With nearly 15 years experience in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character :
7. Static RUNOUT
8. Dynamic RUNOUT
9. Motor check
10. Vibration
11. Material analysis & strictly quality test detection control
12. Stringent tolerance control
