Product Details:
Payment & Shipping Terms:
|
| Material: | Steel, Copper | ||
|---|---|---|---|
| Highlight: | PCB CNC Grinding Spindle Shafts,ABL H920B spindle shaft |
||

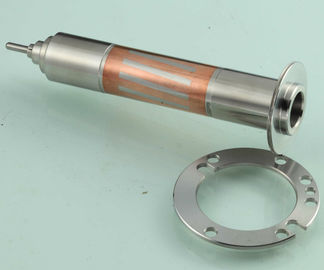

CNC Milling / Grinding Spindle Shafts ABL H920B 200000 rpm
Quick Detail:
|
MODEL |
Name |
OEM |
Max Speed |
Application |
Machine |
|
H920B |
SPINDLE SHAFT |
ABL |
200,000 rpm |
PCB drilling |
HITACHI |
Description:
H920B Spindle shafts Of PCB Air Bearing spindle
Spindle shaft with high precision, high quality, is using for H920B spindle. The spindle is suitable for PCB drilling Hitachi machine. 200,000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.
Shaft plays a KEY important role of a PCB spindle. It is important to make sure the surface is to specification (size and run out) or the following may result :
- Run out
- Vibration
- Fretting
- Noise
- Poor part finish
- Decreased bearing life
- Coupling damage
- Rotary Union Damage
Air bearing spindles are required a high precision, accuracy shaft to support, so that can be running in good condition for PCB CNC drilling. As a professional manufacturer, we put a lot of capital on the technical and inspection equipments, for achieving high precision requirements to make sure the spindle quality.
Friendly reminding, properly maintenance spindle and collet is good for prolong spindle using life, also good for each parts using life.
Specifications:
|
SHAFT FOR AIR BEARING SPINDLE |
||
|
MODEL |
SPEED (RPM) |
APPLICABLE TO |
|
M320-64C |
80K |
PCB drilling or routing |
|
ABW110 |
110K |
PCB drilling |
|
D1331 |
125K |
PCB drilling |
|
D1201-21 |
125K |
PCB drilling |
|
H501A(D1264-07) |
125K |
PCB drilling |
|
H512A(D1600-01) |
125K |
PCB drilling |
|
D1531-09 |
150K |
PCB drilling |
|
H516D(D1722-03) |
160K |
PCB drilling |
|
H916C |
160K |
PCB drilling |
|
D1769 |
160K |
PCB drilling |
|
D1686 |
180K |
PCB drilling |
|
D1780-01 |
180K |
PCB drilling |
|
H920B |
200K |
PCB drilling |
|
H920E1 |
200K |
PCB drilling |
|
D1822 |
200K |
PCB drilling |
|
More than above models can offered please contact us for details. |
||
