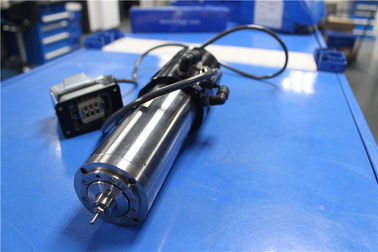

60,000RPM KL-60C-2 CNC Milling Spindle Dental Grinding
PRODUCT DESCRIPTION
MODEL: KL-60C-2
NAME : BALL BEARING SPINDLE
SPEED RANGE: 10,000 - 60,000 rpm
BEARING TYPE: Ball bearing
SPINDLE WEIGHT: 4.6kg
COLLET SIZE: ø3.175
Air Pressure: ≥6 kgf/cm²
Motor power: 1.2KW
Coolant: Water oil
Coolant water temperature: 20+2
Voltage: 33-200V
MAX. CURRENT (A): 3A
Dynamic Runout: ≤8
Vibration: 1.0MM/S
Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ø3.175≥800g
Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR P.C.B ROUTING INDUSTRY, OPTIC EYEGLASSES GRINDING, FOR DENTAL GRINDING INDUSTRY.
APPLICATION :
1, PRINT CIRCUIT BOARD ROUTING PROCESS
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
2, OPTIC EYEGLASSES PROCESS
3, APPLIED IN DENTAL INDUSTRY
Quick Detail:
|
MODEL |
NAME |
DESCRIPTION |
Application |
Machine reference |
|
KL-60C-2 |
SPINDLE |
SPEED RANGE:10,000 - 60,000 rpm High speed precision grinding |
PCB Routing Optic Glasses Grinding
|
DALIANG RISONG
|
SPECIFICATION:
|
SPEED RANGE |
10,000-60,000 |
|
FREQUENCY (HZ) |
167-1000 |
|
MOTOR TYPE |
THREE PHASE |
|
MOTOR OUTPUT POWER |
1.2KW-1.5KW |
|
TORQUE(g) |
ø3.175≥800g |
|
VOLTAGE (V) |
33-200 |
|
COLLET CLAMPING DIAMETER (mm) |
ø3.175 |
|
COLLING TEMPERATURE(°C) |
20 |
|
BEARING TYPE |
BALL BEARING |
|
AIR PRESSURE (kg/cm2) |
≥6 |
|
RUNOUT (μm) |
≤8 |
|
VIBRATION (mm/s) |
≤1.0 |
|
THREE PHASE RESISTANCE (Ω) |
2.2 |
|
COLLET LOCK TYPE |
DEAD COLLET |
|
SPINDLE WEIGHT (kg) |
Around 4.6 |
|
MAX. CURRENT (A) |
< 5 |
|
GRIP AIR PRESSURE (kg/cm2) |
≥1.5 |
|
RELEASE AIR PRESSURE (kg/cm2) |
≤4.5 |
KL-60C-2 Spindle drawing
