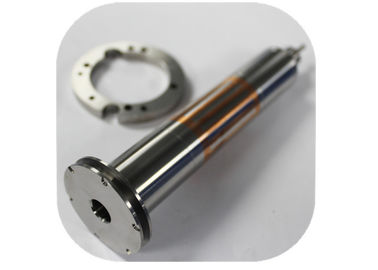

Drilling / Routing Spindle Shafts

Drilling / Routing Spindle Shafts
Drilling / Routing Spindle Shafts Drilling / Routing Spindle Shafts Drilling / Routing Spindle Shafts Drilling / Routing Spindle Shafts

Large Image :  Drilling / Routing Spindle Shafts Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008
Model Number: D1331-17
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Export Box
Delivery Time: 7~20 days
Payment Terms: TT IN ADVANCE
Detailed Product Description
Highlight:

spindle stub shaft

,

spindle shaft

,

PCB drilling Spindle Shafts







  Quick Detail:



MODEL

Name

OEM

Max Speed

Application

Machine

D1331-17

 SPINDLE SHAFT

WESTWIND

125,000 rpm

PCB drilling

Schmoll, Pluritec.etc.





Description:



D1331-17 Westwind Spindle shafts Of PCB Air Bearing spindle



Spindle shaft with high precision, high quality, is using for D1331-17 spindle. The spindle is suitable for PCB drilling in the SCHMOLL, Pluritec ,etc. machines. 125,000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.



Shaft places a KEY important role of a PCB spindle. It is important to make sure the surface is to specification (size and run out) or the following may result:
- Run out
- Vibration
- Fretting
- Noise
- Poor part finish
- Decreased bearing life
- Coupling damage
- Rotary Union Damage



Air bearing spindles are required a high precision, accuracy shaft to support, so that can be running in good condition for PCB CNC drilling. As a professional manufacturer, we put a lot of capital on the technical and inspection equipments, for achieving high precision requirements to make sure the spindle quality.



Friendly reminding, properly maintenance spindle and collet is good for prolong spindle using life, also good for each parts using life.



Specifications:

SHAFT FOR AIR BEARING SPINDLE

MODEL

SPEED (RPM)

APPLICABLE TO

M320-64C

80K

PCB drilling or routing

ABW110

110K

PCB drilling

D1331

125K

PCB drilling

D1201-21

125K

PCB drilling

H501A(D1264-07)

125K

PCB drilling

H512A(D1600-01)

125K

PCB drilling

D1531-09

150K

PCB drilling

H516D(D1722-03)

160K

PCB drilling

H916C

160K

PCB drilling

D1686

180K

PCB drilling

D1780-01

180K

PCB drilling

H920B

200K

PCB drilling

H920E1

200K

PCB drilling

D1822-09

200K

PCB drilling

More than above models can offered please contact us for details.







Communication with Customers



Cus.: Hi, do you have D1331-17 shaft?

KLKJ: Yes, how many do you need?

Cus.: Two, possible?

KLKJ: Sure, I double check the stock and email you later.

Cus.: OK, do you have the spindle?

KLKJ: Sorry, no produce the spindle for this model any more, it is less demand now.

Cus.: OK.  I also want other parts.

KLKJ:  Great!  Kindly please advise which parts?

Cus.:  I check and email you.

KLKJ:  Good. Bye.
