Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM

I'm Online Chat Now
China KLKJ Group Co.,Ltd. certification
KLKJ Company is a high class company to make spindles

—— Mr. Luigi

Tested , finish quality looks great! We will order more in the near future.

—— Mr. Ron

we are intending to think over a long-term solution in cooperation with KLKJ is without doubt .

—— Mr. Kevin

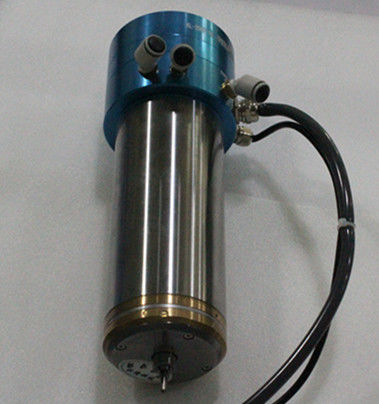

Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM

Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM
Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM

Large Image :  Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: KLKJ
Certification: ISO9001
Model Number: KL200K
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: STANDARD SAFT PACKAGE
Delivery Time: 20-35
Payment Terms: T/T IN ADVANCE
Supply Ability: 300SET/MONTH
Detailed Product Description
High Light:

200000RPM Precise High Speed Spindles

,

0.8KW High Speed Cnc Spindle

,

High Speed Precision Spindles 200V



Compatible H920E1 200,000RPM KL200K CNC High Speed Spindle PCB Drilling


Quick Detail:



MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

KL200K

H920E1

SPEED RANGE:20,000 - 200,000 rpm
Ø6.35mm-0.05mm precision drilling

PCB PRECISION DRILLING

KLINGINBERG PLURITEC
HITACHI
LENZ
ANDERSON ….

 What is the advantage of a hi speed spindle motor?
High-Speed Motorized Spindles of CNC Machine Tools | Encyclopedia MDPI. High-speed motorized spindles tend to develop in the direction of high precision, high speed, low energy consumption, high efficiency, and high reliability.

PRODUCT DESCRIPTION


MODEL:KL200K
REPLACE FOR:H920E1SPEED RANGE:20,000 - 200,000 rpm
BEARING TYPE:Air bearing
SPINDLE WEIGHT:3.3kg
COLLET SIZE:Ø1/8”
BODY SIZE: Ø 61.9

Max power:0.8KW
Air Pressure: 6.0 kgf/cm²
Coolant:Water oil
Fixed voltage:200V
Fixed current:3A
FREQUENCY (HZ): 334-3350
Static Runout:<1µm
Dynamic Runout:<7µm
Vibration:1.0MM/S

Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING

APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….

SPECIFICATION:



Coolant water temperature

20+2

Static runout

<1µm

Dynamic runout

<7µm

Collet torque(N.cm)

>=150( 1/8”)

Vibration

1.0MM/S

Temperature sensor ohms KΩ

R=10±3% AT 25℃

Open air pressure

                          <4.5 kg/cm²

Close air pressure

>2.5 kg/cm²

Coolant water flux

>1.2(L/min)

Coolant oil flux

>2.5(L/min)

Air consume flux

45(L/min)

Radial load

5.5kgf




                   KL200K SPINDLE OUTLINE

Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM 0
Low Static 0.8KW 200V CNC High Speed Spindle Compatible H920E1 200000RPM 1


Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.


All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:

  1. Air flow
  2. Water flow
  3. End float/lift off
  4. Axial load (inner)
  5. Axial load (outer)
  6. Torque

7.  Static RUNOUT

8.  Dynamic RUNOUT

9.  Motor check

10. Vibration

11. Material analysis & strictly quality test detection control

12. Stringent tolerance control
