| Color: | According To The Customer Request | ||
|---|---|---|---|
| Highlight: | Oil Cooled Motor Spindle,High Glossy Polishing Motor Spindle,Aluminum Motor Spindle |
||

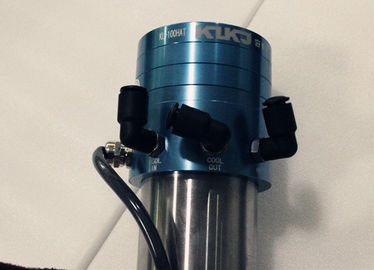

0.85KW 75,000 RPM High glossy polishing Aluminum spindle
PRODUCT DESCRIPTION
MODEL : KL-100HAT
SPEED RANGE : 18,000 - 100,000 rpm
BEARING TYPE : Air bearing
SPINDLE WEIGHT : 3.8kg
COLLET SIZE : Ø1/8” Ø6 (Optional)
BODY SIZE : Ø 61.9
Air Pressure : 6.0 kgf/cm²
Max power : 0.85KW
Coolant : Water / Oil
Coolant water temperature : 20+2
Fixed voltage : 180V
Fixed current : 4 A
Static Runout : <2µm
Dynamic Runout : <7µm
Max axial load : 196 N
Vibration : 0.8MM/S
Temperature sensor ohms KΩ : R=60±5% AT 25℃
Competitive Advantage :
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR Aluminum Frame high glossy polishing
APPLICATION :
Mirror surface polishing for aluminum frame edge
Cutting depth : 0.05mm-0.1mm
MACHINE REFERENCE : KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
Quick Detail :
|
Model |
Replace For |
DESCRIPTION |
Application |
Machine reference |
Bearing type |
|
KL-100HAT |
|
SPEED RANGE : 10,000 - 100,000 RPM(Best: 75,000-80,000) |
Almuminum Frame mirror polishing
|
KLINGINBERG PLURITEC HITACHI LENZ ANDERSON …. |
Air bearing |
SPECIFICATION:
|
Speed range |
18,000 - 100,000 rpm |
|
|
Air Pressure |
6.0 kgf/cm² |
|
|
Max power |
0.85KW |
|
|
Coolant |
Water / Oil |
|
|
Coolant water temperature |
20+2 |
|
|
Fixed voltage |
180V |
|
|
Fixed current |
4A |
|
|
Bearing type |
AIR BEARING |
|
|
Static runout |
<2µm |
|
|
Dynamic runout |
<7µm |
|
|
Max axial load |
200N |
|
|
Spindle weight |
3.8kg |
|
|
Cutting Depth |
Ø0.05mm-0.1mm |
|
|
Vibration |
0.5MM/S |
|
|
Collet size |
Ø1/8” |
|
|
Temperature sensor ohms KΩ |
R=60±5% AT 25℃ |
|
|
BODY SIZE |
Ø 61.9 |
|
Why choose KLKJ?
With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character :
7. Static RUNOUT
8. Dynamic RUNOUT
9. Motor check
10. Vibration
11. Material analysis & strictly quality test detection control
12. Stringent tolerance control
Spindle drawing
SPINDLE SKETCH
