PRODUCT DESCRIPTION
MODEL: KL-160D

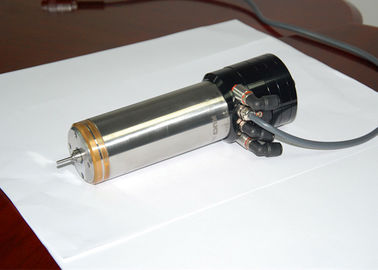

NAME : AIR BEARING SPINDLE
SPEED RANGE: 20,000 - 160,000 rpm
BEARING TYPE: Air Bearing
SPINDLE WEIGHT: 4.1kg
COLLET SIZE: ø3.175
Air Pressure: 6 kgf/cm²
Motor power: 0.85KW
Coolant: Water or oil
Coolant water temperature: 20℃+2
Voltage: 60-189V
Rated. CURRENT (A): 4A
Dynamic Runout: ≤7μm
Vibration: 1.0MM/S
Temperature sensor ohms KΩ: R= 0.1±5%( AT 25℃)
TORQUE(g): ø3.175≥650g; >=150N.cm
Competitive Advantage:
LOW STATIC & DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
SUITABLE FOR PCB DRILLING INDUSTRY, COMPETIABLE
APPLICATION :
1, PRINTED CIRCUIT BOARD DRILLING PROCESS
MACHINE REFERENCE:KLINGINBERG PLURITEC ;HITACHI ;LENZ ;ANDERSON ….
Quick Detail:
MODEL |
NAME |
DESCRIPTION |
Application |
Machine reference |
Bearing type |
KL-160D |
SPINDLE |
SPEED RANGE: 20,000 -160,000 rpm Ø6.35mm-0.05mm precise drilling |
Print Circuit Boad Drilling |
KLINGINBERG PLURITEC |
Air Bearing |
SPECIFICATION:
SPEED RANGE(RPM) |
20,000-160,000 |
FREQUENCY (HZ) |
334-2760 |
MOTOR TYPE |
THREE PHASE |
MOTOR OUTPUT POWER |
0.85KW |
TORQUE(g) |
ø3.175≥650g |
VOLTAGE (V) |
60-189 |
COLLET CLAMPING DIAMETER (mm) |
ø3.175 |
COOLING TEMPERATURE(°C) |
20 |
BEARING TYPE |
AIR BEARING |
AIR PRESSURE (kg/cm2) |
6 |
RUNOUT (μm) |
≤7.0 |
VIBRATION (mm/s) |
≤1.0 |
THREE PHASE RESISTANCE (Ω) |
1.5±0.2 |
COLLET LOCK TYPE |
DEAD COLLET |
SPINDLE WEIGHT (kg) |
Around 4.1 |
Rated. CURRENT (A) |
4 |
GRIP AIR PRESSURE (kg/cm2) |
≥2.0 |
RELEASE AIR PRESSURE (kg/cm2) |
≤5.0 |
