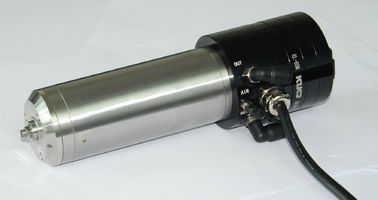

KL-60M CNC Engraving And Milling Machine Dental Grinding Touchscreen Outline Grinding Ball Bearing Spindle

KL-60M CNC Engraving And Milling Machine Dental Grinding Touchscreen Outline Grinding Ball Bearing Spindle
KL-60M CNC Engraving And Milling Machine Dental Grinding Touchscreen Outline Grinding Ball Bearing Spindle

Large Image :  KL-60M CNC Engraving And Milling Machine Dental Grinding Touchscreen Outline Grinding Ball Bearing Spindle Get Best Price

Product Details:
Place of Origin: China
Brand Name: KLKJ
Certification: ISO9001:2008 ; UKAS; IAF
Model Number: KL-60M
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time: 10-25 WORK DAYS
Payment Terms: T/T, Western Union
Supply Ability: 500 PCS/MONTH
Detailed Product Description
Color: According To Customer Request
Highlight:

NC Engraving dental spindle

,

electric Ball Bearing Spindle

,

cnc engraving and milling spindle

PRODUCT DESCRIPTION


MODEL: KL-60M
NAME : BALL BEARING SPINDLE
MAX RPM : 60,000 rpm
BEARING TYPE: Ball Bearing
SPINDLE WEIGHT: 4.6kg
COLLET SIZE: ø6 mm

Working Air Pressure: ≥5.0 kgf/cm²
Motor power: 1.5KW
Coolant: Water or Oil
Coolant water temperature: 20±2℃
Rated Voltage : 200V
Max Current : 5A

Static Runout :≤2.0μm
Dynamic Runout: ≤10μm
Vibration: 1.0MM/S
Temperature sensor Resistence : R=10kΩ±5%(at 25℃)


Competitive Advantage:

LOW STATIC RUN OUT
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
MULTYPURPOSE


APPLICATION :

Suitable for CNC engraving & milling machine,dental grinding,touch-screen glass of mobile outline grinding,


Quick Detail:

MODEL

DESCRIPTION

Application

Machine reference

Bearing type

KL-60M

SPEED RANGE: 10,000 - 60,000 rpm
High power & multipurpose

CNC engraving & milling machine,dental grinding,touch-screen glass of mobile outline grinding,

TALIANG; LISONG

BallBearing



SPECIFICATION:


SPEED RANGE(RPM)

10,000-60,000

FREQUENCY (HZ)

167-1000

MOTOR TYPE

THREE PHASE

MOTOR OUTPUT POWER

1.5KW

TORQUE(N.cm)

382

VOLTAGE (V)

33-182

COLLET CLAMPING DIAMETER (mm)

ø6

COOLING TEMPERATURE(°C)

20±2

BEARING TYPE

BALL BEARING

STATIC RUNOUT(μm) ≤2

DYNAMIC RUNOUT (μm)

≤10

VIBRATION (mm/s)

≤1.0

THREE PHASE RESISTANCE (Ω)

2.2±0.2

COLLET LOCK TYPE

DETACHABLE

SPINDLE WEIGHT (kg)

Around 4.6

MAX CURRENT (A)

5

DUST BLOW AIR PRESSURE (kg/cm2)

≥2.0

RELEASE AIR PRESSURE (kg/cm2)

≥5



Spindle Drawing

KL-60M CNC Engraving And Milling Machine Dental Grinding Touchscreen Outline Grinding Ball Bearing Spindle 0
